| Solenoid Valve ( With Coil ) | |
|---|---|
| Warehouse: | CNBM Shanghai NO.6 |
| Product code: | SN_E0423A91E265 |
| Mini Order Qty: | 1 |
| Type: | |
| Drawing No.: | |
| Quantity: | - + SET |
| Remaining : | 100 |
| Shipping Cost: | To be confirmed |
| Add to Cart Add to Wishlist( 0 Adds) | |
Type: Valves
Model Number: 4V310-10
Quality system certification: ISO9001:2008 and CE
Quality Control Dept: 7 technicians of QA, QC, QE
Effective Area: 30m㎡(CV=1.68)
Position and Way NO.: 5/2 way
Operation: Inside pilot type Fluid: 40 micron filtered air
Operating Pressure: 0.15~0.8Mpa
Operating Temperature: 5~50℃Electrical Entry: Lead wire or connector

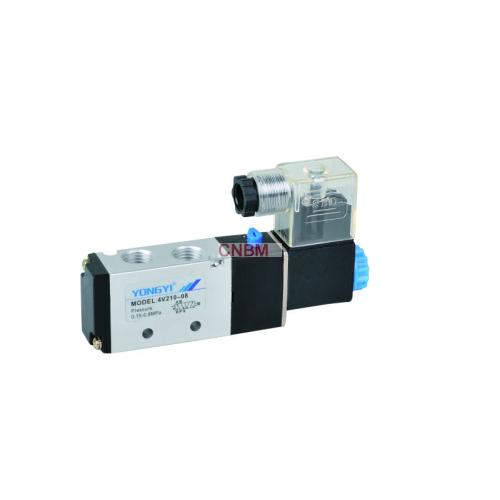

300 Series Solenoid Valve, Pneumatic Control Valve
1. 5/2 way valve
2. Long lifecycle
3. Coils made by full-automatic machine

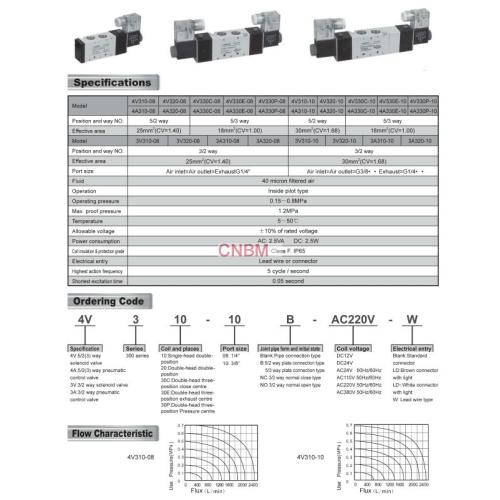

Model: 300 Series Solenoid Valve, Pneumatic Control Valve 4V310-10
Features
Approved by ISO9001:2008, CE, ROHS Quality System Certification, combining with advanced testing device, our products can meet the needs of cutomers' and accord with the law
