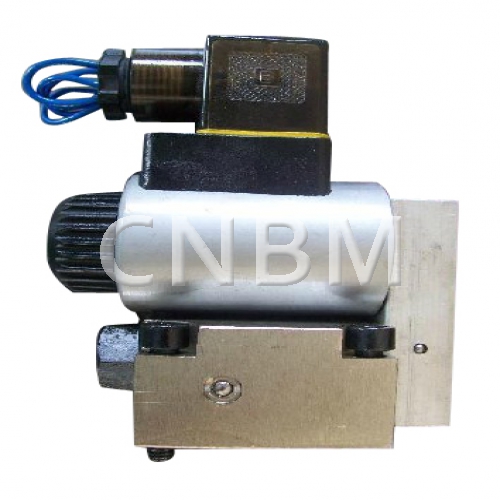

| Electromagnetic Ball Valve | |
|---|---|
| Warehouse: | CNBM Shanghai NO.6 |
| Product code: | SN_4B590FF29975 |
| Mini Order Qty: | 1 |
| Type: | |
| Drawing No.: | |
| Quantity: | - + SET |
| Remaining : | 100 |
| Shipping Cost: | To be confirmed |
| Add to Cart Add to Wishlist( 0 Adds) | |
Quick Details
Material: Carbon Steel
Connection: thread
Structure: Fixed ball valve
DN: 50（mm）
Media: oil
Pressure: High pressure
Operating Temperature: Normal atmospheric temperature
Standard: international standard
1. Model Description
Working media: mineral oil; W-emulsion or high water based fluids
Two-way or two Stone: 23 - two-way 24 - two four
Function Code: K-NO, B-NC
Pressure level :315-31 .5 MPa; 200-20MPa
Rated operating voltage: 24VDC; 200VAC
Medium temperature: -15 ℃ ~ 65 ℃
Typical media viscosity: 10 ~ 350cSt
Filtration precision: ≤ 25μ
