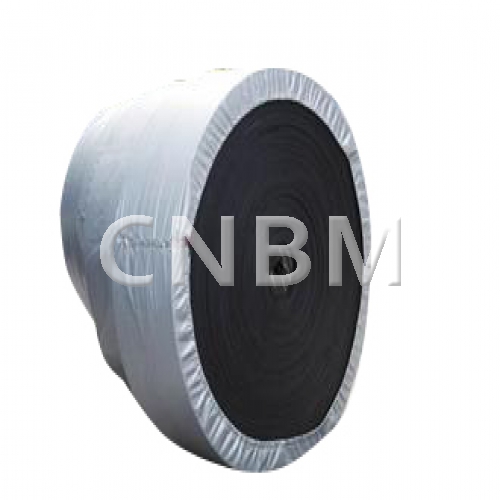

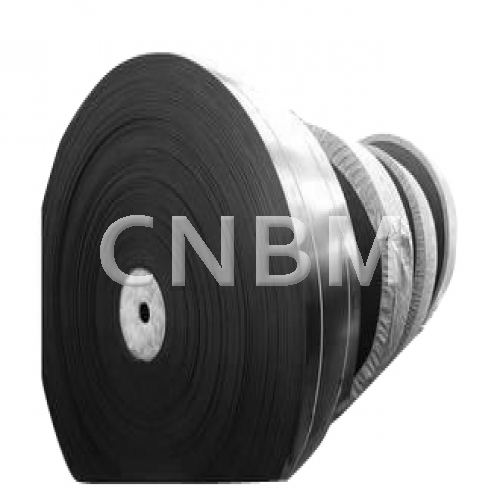

| ST800 Belt | |
|---|---|
| Warehouse: | CNBM Shanghai NO.6 |
| Product code: | 1560219114 |
| Mini Order Qty: | 1 |
| Type: | |
| Drawing No.: | |
| Quantity: | - + M |
| Remaining : | 1000 |
| Shipping Cost: | To be confirmed |
| Add to Cart Add to Wishlist( 0 Adds) | |
Quick Details
Standard: GB/T9770, DIN22131, EN ISO 15236, SANS1366
Certification: ISO9001:2000

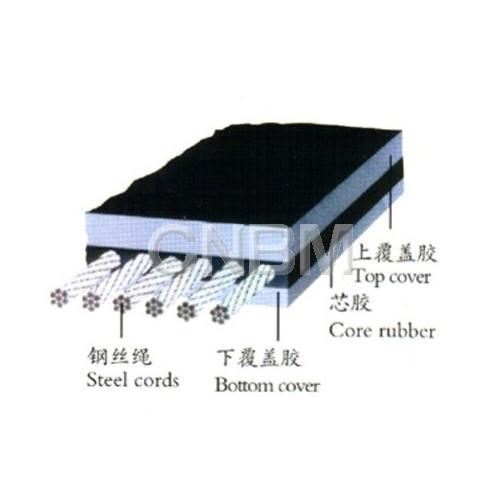

Material: Rubber & Steel cord
Color: Black
Rubber Tensile Strength: 630-7500N/mm
Length: 50-400m
Width: 400-2000mm
Packaging ＆ Delivery
Packaging Detail: PP bag packed all side, rubber core / steel pipe inside .generally can load 10-25 rolls one container.
Delivery Detail: 3-5 working days, 8-14 working days, 20-30 working days.
Specifications
Good Impact Resistance
Diameter of steel cord: 3.5mm
Type: ST800
Steel Cord Pitch: 10+/1.5mm
Cover Grade: 15MPa, 17MPa, 18MPa, 20MPa, 24MPa etc.
parameters:
|
strength of the belt specifications |
ST |
ST |
ST |
ST |
ST |
ST |
ST |
ST |
ST |
ST |
ST |
ST |
ST |
|
630 |
800 |
1000 |
1250 |
1600 |
2000 |
2500 |
3150 |
3500 |
4000 |
4500 |
5000 |
5400 |
|
|
longitudinal tensible strength |
630 |
800 |
1000 |
1250 |
1600 |
2000 |
2500 |
3150 |
3500 |
4000 |
4500 |
5000 |
5400 |
|
Maximal nominal diameter |
3 |
3.5 |
4 |
4.5 |
5 |
6 |
7.2 |
8.1 |
8.6 |
8.9/9.1 |
9.7 |
10.9 |
11.3 |
|
of the steel wire mm |
|||||||||||||
|
Space bettween cord |
10 |
10 |
12 |
12 |
12 |
12 |
15 |
15 |
15 |
15/17 |
16 |
17 |
17 |
|
8 |
5 |
5 |
6 |
6 |
6 |
8 |
8 |
8 |
8 |
8/8 |
8 |
8.5 |
9 |
|
Bottom cover thickness |
5 |
5 |
6 |
6 |
6 |
6 |
6 |
8 |
8 |
8/8 |
8 |
8.5 |
9 |
|
Quality |
18 |
19.5 |
21.5 |
22.2 |
26.1 |
33.1 |
35.3 |
41.1 |
45 |
45/45 |
51 |
59 |
62 |
|
Width specifications |
Number of steel cords |
||||||||||||
|
800 |
75 |
75 |
63 |
63 |
63 |
63 |
50 |
50 |
|
|
|
|
|
|
1000 |
95 |
95 |
79 |
79 |
79 |
79 |
64 |
64 |
64 |
64/56 |
59 |
55 |
55 |
|
1200 |
113 |
113 |
94 |
94 |
94 |
94 |
76 |
76 |
77 |
77/68 |
71 |
66 |
66 |
|
1400 |
133 |
133 |
111 |
111 |
111 |
111 |
89 |
89 |
90 |
90/79 |
84 |
78 |
78 |
|
1600 |
151 |
151 |
126 |
126 |
126 |
126 |
101 |
101 |
104 |
104/91 |
96 |
90 |
90 |
|
1800 |
|
171 |
143 |
143 |
143 |
143 |
114 |
114 |
117 |
117/108 |
109 |
102 |
102 |
|
2000 |
|
|
159 |
159 |
159 |
159 |
128 |
128 |
130 |
130/114 |
121 |
113 |
113 |
|
2200 |
|
|
|
|
|
176 |
141 |
141 |
144 |
144/125 |
134 |
125 |
125 |
