| EP300 Belt | |
|---|---|
| Warehouse: | CNBM Shanghai NO.6 |
| Product code: | 1560219118 |
| Mini Order Qty: | 1 |
| Type: | |
| Drawing No.: | |
| Quantity: | - + M |
| Remaining : | 1000 |
| Shipping Cost: | To be confirmed |
| Add to Cart Add to Wishlist( 0 Adds) | |
Quick Details
Standard: GB/T7984-2001 DIN22102 AS1332 JISK63
Certification: ISO, DIN, RMA, AS, BS, SABS and JIS, etc
Material: Rubber & EP Fabric
Color: Black
Rubber Tensile Strength: 8-24mpa
Length: 50-400m
Width: 400-2400mm
Thickness: 3-30mm
Packaging ＆ Delivery

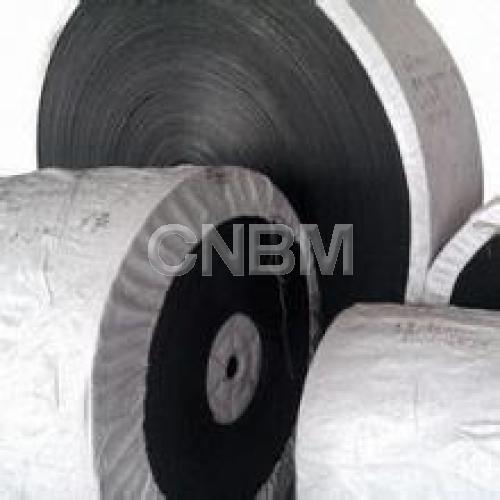

Packaging Detail: PP bag packed all side, rubber core / steel pipe inside .generally can load 10-25 rolls one container.
Delivery Detail: 3-5 working days, 8-14 working days, 20-30 working days.
Specifications
Rubber Tensile Strength: 8-24mpa
Length: 50-400m
Width: 400-2400mm
Thickness: 3-30mm
General Fabric Conveyor Belt For Conveying Systems (EP100/125/150/200/300 Etc)
Conveyor belt Applications: polyester conveyor belt called EP conveyor belt for short .Used in mine ,cement plant.Steel and Iron factory ,metallurgy, construction ports and etc .
Conveyor belt Feature: the carcass is EP fabric(warp is PET, weft is NN66). With the benefit that light in weight, high modulus, impact resistant, Low loading extension rate, Easy to trough and track, good flexibility , Anti- heat and humidity and also avoid insect destroy.
conveyor belt Market: Aggregate, Baggage Handling, Bulk Handing, Cement, Coal, Foundry, Grain, Hard Rock, Package Handling, Wood Products, Sand and Gravel, Steel Products.
conveyor belt Tensile strength: 80~3000N/mm width :300mm-2500mm
conveyor belt Features:
1,Reduced strength .2,High-modules, superior troughing characteristics:3,Variety of cover compounds and cover gauges:
Specification and technical data of polyester conveyor belt
|
|
Fabric structure |
Ply thickness |
|
(N/mm) |
(mm) |
Width |
Length |
||||||
|
Warp |
Weft |
2ply |
3ply |
4ply |
5ply |
6ply |
Upper |
Upper |
|||||
|
Polyester |
Polyester |
Polyamine |
EP-80 |
0.6 |
160 |
240 |
320 |
400 |
480 |
1.5~12 |
0~4.5 |
300~2500 |
≤300 |
|
EP-100 |
0.75 |
200 |
300 |
400 |
500 |
600 |
|||||||
|
EP-150 |
1 |
300 |
450 |
600 |
750 |
900 |
300~2500 |
||||||
|
EP-200 |
1.1 |
400 |
600 |
800 |
1000 |
1200 |
|||||||
|
EP-250 |
1.25 |
500 |
750 |
1000 |
1250 |
1500 |
|||||||
|
EP-300 |
1.35 |
600 |
900 |
1200 |
1500 |
1800 |
300~2500 |
||||||
|
EP-350 |
1.45 |
|
1050 |
1400 |
1750 |
2100 |
300~2500 |
||||||
|
EP-400 |
1.55 |
|
|
1600 |
2000 |
2400 |
|||||||
|
EP-500 |
1.7 |
|
|
2000 |
2500 |
3000 |
|||||||
Conver properties of the belts
|
|
|
|
|
|
|
|
Mpa |
Kgf/cm2 |
% |
mm3 |
% |
|
|
Strong designated-type working conditions(H) |
24 |
240 |
450 |
120 |
-25~+25 |
|
Strong wear working conditions (D) |
18 |
180 |
400 |
100 |
-25~+25 |
|
General working conditions Light(L) |
15 |
150 |
350 |
200 |
-25~+25 |
Adhesion and elongation of the belt
|
Item |
|
N/mm |
Elongation |
||
|
Covering thickness |
Covering thickness |
|
Longitudinal elongation |
||
|
All the sample average ,N/mm,≥ |
4.5 |
3.2 |
3.5 |
||
|
All samples minimum peak ,N/mm,≥ |
3.9 |
2.4 |
2.9 |
10 |
4 |
