Keyword: roller    shaft   bolt

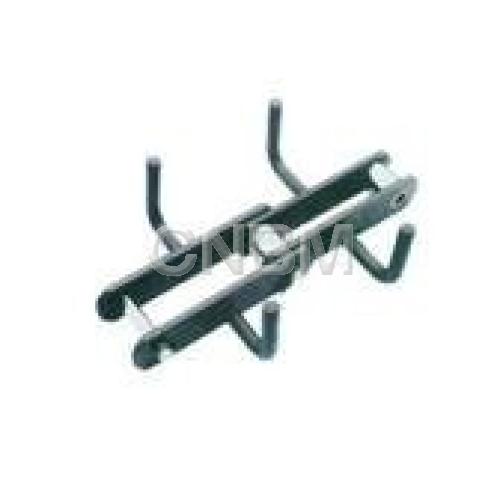

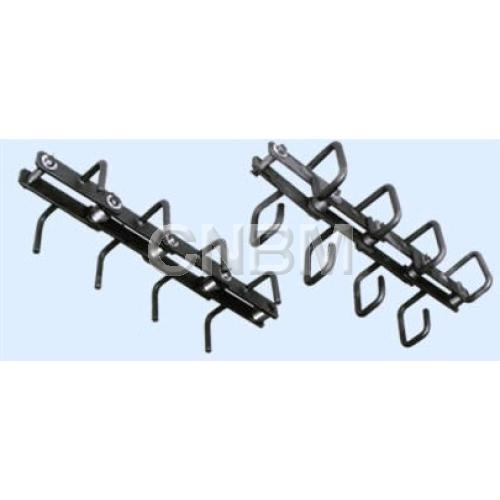

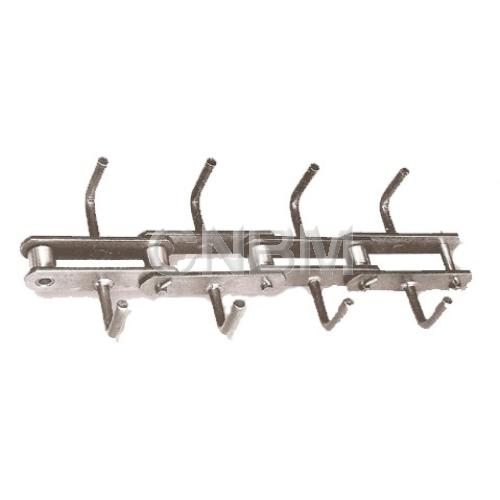

Running Chain
Warehouse: CNBM Shanghai NO.6
Product code: 1564114101
Mini Order Qty: 100
Type:
Drawing No.:
Quantity: - + M
Remaining : 1000
Shipping Cost: To be confirmed
Add to Cart     Add to Wishlist( 0 Adds)

Quick Detail:

Material: Stainless Steel

Type: Stainless Steel Table Top Chains

Color: Metal Color

Back Radius: 150mm (6 Inch)



Packaging & Delivery

Delivery Detail: Carton (Up to orders).

Delivery Detail: 3-5 working days, 8-14 working days, 20-30 working days.



Specifications

Stainless steel table top chains

ISO9001:2008

Pitch: 38.1mm with different width

























企业链号

节距

滚子直径

销轴直径

销轴长度

内节内宽

链板

链钩高

链钩直径

链宽

P

D

d

L

W

H×T

H1

d1

L1

mm

mm

mm

mm

mm

mm

mm

mm

mm

FU150

101.6

26.5

11.5

70

27

35×6

48

12

123

FU200

152.4

36

15.5

90

36.5

50×8

65

16

159

FU270

152.4

36

15.5

90

36.5

50×8

85

16

226

FU350

200

44.5

19.1

120

51.8

60×10

123

20

290

FU410

200

44.5

19.1

120

51.8

60×10

148

20

350

FU500

300

63.5

31.75

146

67.4

90×12

180

22

442

FU600

300

48.5

22.2

126

57.6

75×10

215

25

540

FU350(强力)

200

48.5

22.2

126

57.6

75×10

123

20

290

FU410(强力)

200

48.5

22.2

126

57.6

75×10

148

20

350
