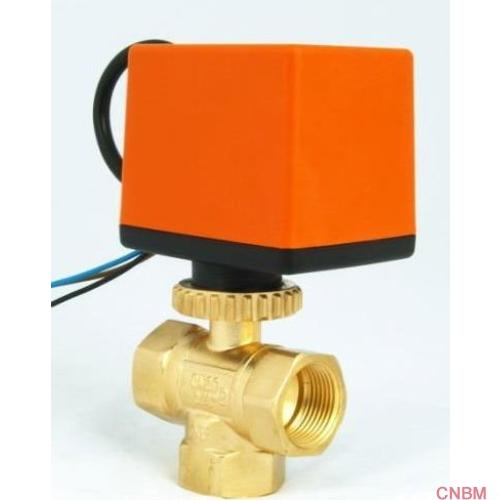

| Electro Three Way Valve | |
|---|---|
| Warehouse: | CNBM Shanghai NO.6 |
| Product code: | SN_2C8D34080E51 |
| Mini Order Qty: | 1 |
| Type: | |
| Drawing No.: | |
| Quantity: | - + EA |
| Remaining : | 1000 |
| Shipping Cost: | To be confirmed |
| Add to Cart Add to Wishlist( 0 Adds) | |
Quick Details
Standard or Nonstandard: Standard
Structure: Ball
Pressure: Low Pressure
Power: electric,motor,msnual
Material: Brass
Temperature of Media: Medium Temperature
Media: Water
Port Size: 1/2",3/4"
Place of Origin: Tianjin China (Mainland)
Model Number: CWX-25S
Brand Name: TF Protection: IP65
Packaging & Delivery
Packaging Detail: Carton,Wooden Box
Delivery Detail: 3-5 work days,8-14 work days,20-30 work days
Specifications
Features:
Mini dimension suits for samll equipment
Metal gear
Voltage : DC3-6V,12V,24V,220V
Open/close time: 3-5 sec
Extra long life: 100000 times Min.
Low working current,less 100mA
Protection : IP65
Technical paremeters:
Size: 3/4''
Material: brass
Max working pressure:1.0MPa
Actuator rotation:90 degree
Body: Brass
Torque output: 1.5Nm
Working Presure: 0-10 Bar
Temperature: 0 - 100 degree celsius
Open/Close time: 7 seconds
Number of Wires: 2-5 wires
Protection Class : IP65
Other description：
For Automatic Water Spry System of Grate Cooler model SE-BSLP5000
