speed detector | |
---|---|
Warehouse: | CNBM Shanghai NO.6 |
Product code: | SN_0B270AB370EE |
Mini Order Qty: | 1 |
Type: | |
Drawing No.: | |
Quantity: | - + EA |
Remaining : | 99 |
Shipping Cost: | To be confirmed |
Add to Cart Add to Wishlist( 0 Adds) |
Quick Details
Condition: New

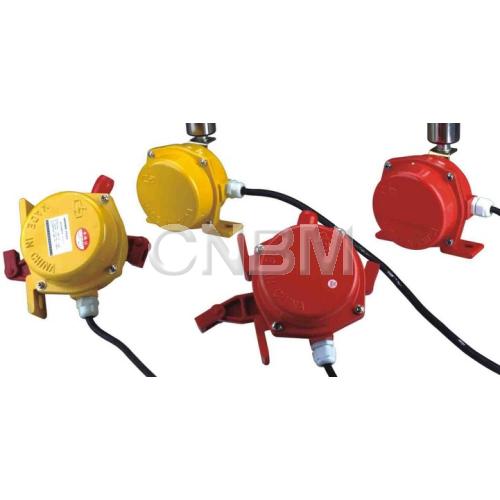

Name: Belt conveyer - speed detector
Environment temperature: -40oC-+50oC
Relative humidity: 0-95%
Material: high-quality stainless steel casting
Atmospheric pressure: 80~110KPa
Packaging & Delivery
Packaging Detail: standard packing or according to customers' needs
Delivery Detail: in 1 month after execution of contract
Specifications
1 speed detector
2 Load current: AC380V 5A , DC24V 5A
3 Power consumption: 7W
4 Sensor head and control casing distance: ≤100m
5 Measure range: 0.01~99.99m/s
6 Working voltage: AC220V 50/60Hz
7 Start-up delays range: 1~999s
8 Delayed alarm range: 1~60s
9 Output way: 4 group switch (heavy skid, light skid ,light speeding , heavy speeding)
10 Reset way: automatic
11 Protection grade: Sensor head :IP65 , control casing :IP54
Other discription
Competitive price
