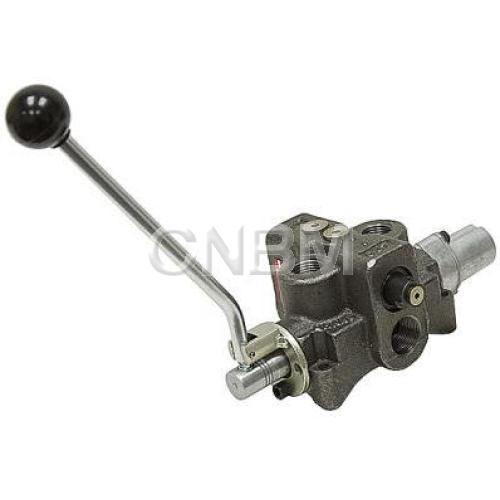

| Single Directional Valve | |
|---|---|
| Warehouse: | CNBM Shanghai NO.6 |
| Product code: | SN_EDDB95F47EC3 |
| Mini Order Qty: | 5 |
| Type: | |
| Drawing No.: | |
| Quantity: | - + EA |
| Remaining : | 999 |
| Shipping Cost: | To be confirmed |
| Add to Cart Add to Wishlist( 0 Adds) | |
| Standard or Nonstandard: | Standard |
| Structure: | Control |
| Pressure: | High Pressure |
| Power: | Hydraulic |
| Material: | Casting |
| Temperature of Media: | Medium Temperature |
| Media: | Oil |
| Place of Origin: | Jiangsu China (Mainland) |
| hydraulic valve: | Excelent design & high quality |
| Packaging Detail: | inner box carton pallet of directional valve |
| Delivery Detail: | 3-7days after receiving payment |
SPECFICATIONS :
|
Nominal Pressure (Mpa) |
Max Pressure (Mpa) |
Nominal Flow (L/Min) |
Allowable Back Pressure (Mpa) |
Hydraulic Oil |
||
|
Temperature range(°C) |
Viscosity range(mm2/s) |
Filter Precision (μm) |
||||
|
20 |
25 |
40 |
≤1 |
-20~+80 |
10~400 |
≤10 |
MODEL MEANING:
ZD — L 102 F —2 O T
(1) (2) (3) (4) (5) (6)
(1), Multiple directional control valve
(2), port thread connection
(3), Nominal dia. 10mm
(4), Nominal pressure,E:16Mpa, F:20Mpa
(5), Spool function : O, P,Y,M
(6), Positioning returning modes ,T: spring return ,W: Ball locking
This series could be made 1-3 SPOOLS .
DRAWING:
Other description：DIFL20H1 PN31.5MPa, FOR KILN ID FAN BEARING LUB.UNIT
