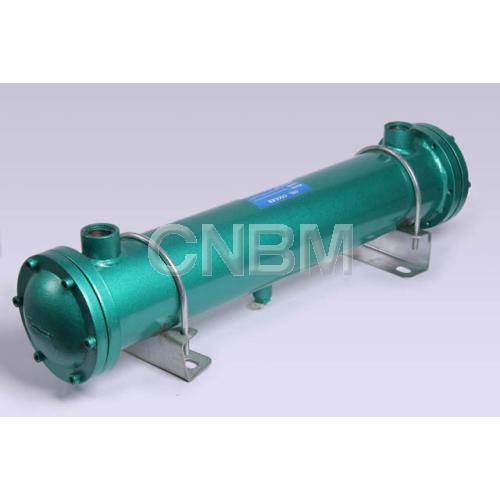

| Tube Type Cooler | |
|---|---|
| Warehouse: | CNBM Shanghai NO.6 |
| Product code: | SN_67BE8B5F5958 |
| Mini Order Qty: | 5 |
| Type: | |
| Drawing No.: | |
| Quantity: | - + EA |
| Remaining : | 9999 |
| Shipping Cost: | To be confirmed |
| Add to Cart Add to Wishlist( 0 Adds) | |
| Place of Origin: | Zhejiang China (Mainland) |
| Brand Name: | FENGAO |
| Model Number: | GLC2-3 |
| Structure: | Tube Heat Exchanger |
| Liquid Flow Rate: | 35-125l/min |
| Maximum Working Pressure: | 1Mpa |
| Weight: | 37KG |
| Certification: | CCC,ISO9000 |
| Warranty: | One year |
| After-sales Service Provided: |
No overseas service provided
|
| Packaging Detail: | packed in polywooden cased. |
| Delivery Detail: | within 60 days after receiving the deposit |
1.ISO9000 ;CCS ;ASME & CE mark are available
2.the company has a history over 35 year
the GLC cooler is used in hydraulic system.it can reduce the oil temperature soon.
Model |
cooling square
(m2) |
pressure(Mpa)
|
temperature(degree)
|
viscosity of medium
|
oil flow range
|
scale of oil,water
|
weight(kg)
|
||||||
|
working pressure
|
oil test pressure
|
water test pressure
|
working temperature
|
working oil temp.
|
oil temp.inlet
|
oil temp.outlet
|
|||||||
| GLC1-0.4 |
0.4
|
0.63
1 |
≤0.1
|
≤0.05
|
25-30
|
≤100
|
55
|
≤46
|
10-50
|
10-35
|
1:1
|
1300-3300
|
9
|
| -0.6 |
0.6
|
25-60
|
3300-5100
|
11
|
|||||||||
| -0.8 |
0.8
|
35-60
|
3350-6500
|
13
|
|||||||||
| -1.0 |
1.0
|
60-75
|
6100-7200
|
14
|
|||||||||
| -1.2 |
1.2
|
60-85
|
6400-8400
|
16
|
|||||||||
| GLC2-1.3 |
1.3
|
0.63
|
≤0.1
|
≤0.05
|
25-30
|
≤100
|
55
|
≤46
|
10-50
|
30-85
|
1:1
|
6400-11000
|
23
|
| -1.7 |
1.7
|
30-113
|
7400-17000
|
26
|
|||||||||
| -2.1 |
2.1
|
30-113
|
9200-21500
|
30
|
|||||||||
| -2.6 |
2.6
|
35-125
|
11300-26000
|
34
|
|||||||||
| -3.0 |
3.0
|
35-125
|
12700-30000
|
37
|
|||||||||
| -3.5 |
3.5
|
40-150
|
14500-34500
|
41
|
|||||||||
| GLC3-4 |
4
|
0.63
1 |
≤0.1
|
≤0.05
|
25-30
|
≤100
|
55
|
≤46
|
10-50
|
35-170
|
1:1
|
14000-31000
|
78
|
| -5 |
5
|
35-190
|
17000-35000
|
82
|
|||||||||
| -6 |
6
|
40-220
|
20000-45000
|
89
|
|||||||||
| -7 |
7
|
45-240
|
24000-49500
|
94
|
|||||||||
| -8 |
8
|
50-280
|
27000-56000
|
100
|
|||||||||
| -9 |
9
|
50-290
|
31000-67000
|
109
|
|||||||||
| -10 |
10
|
60-320
|
33590-69500
|
115
|
|||||||||
| -11 |
11
|
60-350
|
37500-79000
|
122
|
|||||||||
