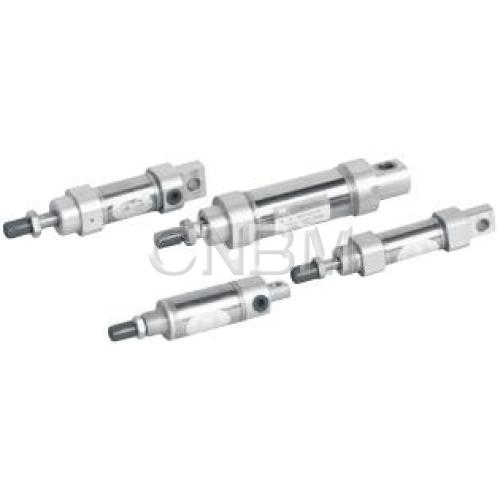

| Air Cyclinder | |
|---|---|
| Warehouse: | CNBM Shanghai NO.6 |
| Product code: | SN_F658F439956F |
| Mini Order Qty: | 10 |
| Type: | |
| Drawing No.: | |
| Quantity: | - + EA |
| Remaining : | 9999 |
| Shipping Cost: | To be confirmed |
| Add to Cart Add to Wishlist( 0 Adds) | |
Quick Details
| Type: | Cylinder |
| Place of Origin: | Wuxi China (Mainland) |
| Model Number: | QGF160×400 |
| pneumatic fitting: | Air cylinder |
| solenoid valve: | Air source treatment |
| material: | Stainless steel |
| Quality System Certification: |
ISO9001:2008 and CE Certification
|
| Service voltage |
AC 220V, 127V, 110V, 36V, 24V DC 110V, 48V, 36V, 24V, 12V |
| Shaft Diameter: | 32, 40, 50, 63, 80,100, 125,160 |
| Cushioning: | Air cushioning (standard) |
| Fluid: | Filtered air |
| Ambient Temperature: | 5~60℃ |
| Operating Piston Speed: | 50~500mm/s |
| Proof Pressure: | 1Mpa |
Packaging & Delivery
|
Packaging Detail: |
Standard export packing with Yongyi brand Client's designed packages OEM packages |
|
Delivery Detail: |
8 days |
Specifications
Pneumatic components
1. SNS is a leading factory in pneumatic components in chin
2. Certificate:ISO9001,ISO6431
3. Variety Model
Features:
1) Bore size(mm) 32 , 40, 50, 63, 80, 100，160
2) Action: Double acting type
3) Working medium: air
4) Application pressure: 0.1-0.9Mpa(1-9kgsf/cm²)
5) Gurantee pressure proof: 1.35Mpa(13.5kgsf/cm²)
6) Working Temp: 5-60°C
7) Cushion type: without cushion
8) Adapter diameter: RC1/4
Other description： For bag filter
