| Run Capacitor | |
|---|---|
| Warehouse: | CNBM Shanghai NO.6 |
| Product code: | SN_48B56C981609 |
| Mini Order Qty: | 5 |
| Type: | |
| Drawing No.: | |
| Quantity: | - + EA |
| Remaining : | 100 |
| Shipping Cost: | To be confirmed |
| Add to Cart Add to Wishlist( 0 Adds) | |
Quick Details

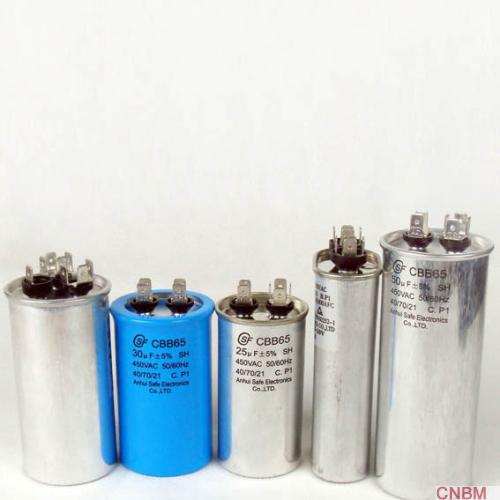

Type: Polypropylene Film Capacitor
Capacitance: 1uF to 150uF
Film Capacitor: Polypropylene Film Capacitor
Application: AC / Motor
Rated Voltage: 250V,370V,400V,440V,450V,480V
Package Type: Surface Mount
Operating Temperature: -40/85/21
Specifications
Low dissipation factor small inherent temperature rise, excellent self-healing stability safety and high voltage withstand etc.Run starting in household electric appliances air conditioner, refrigerator which demand 50/60Hz AC power supply. Having safe protection constrution.
Capacitance range:2MFD-100MFD,15+5MFD-80+7.5MFD
Dimension(mm):D: Φ40-Φ60,H:60-150
Reference standard:UL810,IEC252,EN60252,GB3667
Certification:UL Construction,UL 10,000AFC,TUV,VDE
Safety grade:P1,P2.
