Quick Details

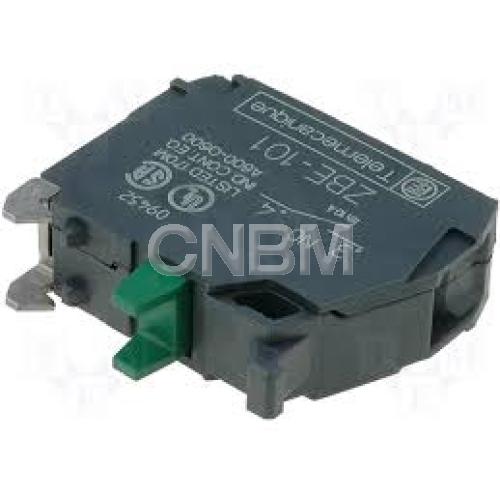

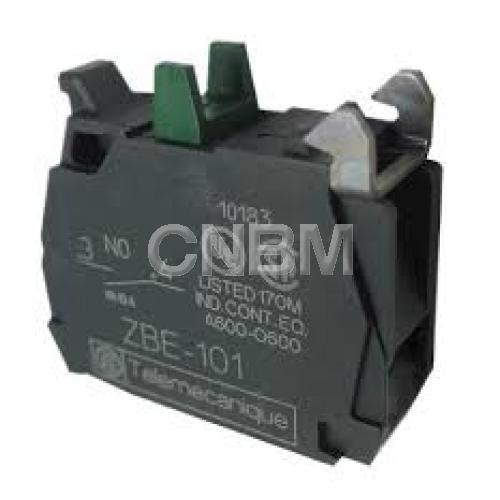

Model: ZBE-101

Custom processing: No

Operation: Open-type contacts

Structure: normally open button

Protection mode: protection type

Operating voltage: 220 380 (V)

Current: 5 (A)

Rated thermal current: 10 (A)

Contact resistance: 50m (Ω)

Insulation resistance: 100 (MΩ)

Mechanical life: 3,000,000 (times)

Head protection: IP65

Other description： For Electronic Component

Application：

XB4 series of buttons is suitable for AC 50Hz (or 60Hz), rated working voltage 380V and below or DC working voltage 220V and below and the industrial control circuits. It is often used as a magnetic starters, contactors, relays and other electrical circuit controller buttons with indicator lights and it also can be applied  in the area that require signal indicating. The products are widely used in following areas: CNC machine tools, machinery, electricity, telecommunications, shipbuilding, metallurgy, chemical industry etc.

The quality of this products has been proved by GB 14048.5-2008 and JB / T 3907-2008 standard.

The main technical parameters:


● Switch Rating: AC-15 36V/10A 110V/10A 220V/5A 380V/2.7A 660V/1.8A DC-13 24V/4A 48V/4A 110V/2A 220V/1A 440V/0.6A

● BA9S lamp beads power consumption: 24V: 0.5W; 220V: 4.5W

● insulation voltage: Ui: 660V

● Conventional thermal current 1th:?? 10A

● Contact resistance: ≤ 50mΩ (initial value)

● Insulation resistance: ≥ 100MΩ

● Contact Material: Silver; silver cadmium oxide

● Maximum pressure: 1890V 3s 50Hz

● Vibration resistance: 50 Hz, the amplitude of about 1mm

● Impact resistance: more than 10m/s2 (about 10g)

● Mechanical life: ≥ 300 million times the general button; knob ≥ 100 million times; key button ≥ 50 million times; emergency stop button ≥ 50 million times

● electrical life: flat-head, mushroom head type, double AC 600,000 times, DC 300,000 times; emergency stop button, select button AC 100,000 times, DC 50000 times

Normal working conditions and installation conditions


● Temperature Working temperature: -20 ℃ ~ +60 ℃; Storage temperature: -40 ℃ ~ +70 ℃

● Operating humidity: 45% ~ 85% RH (non-condensing)

● altitude Installation site altitude does not exceed 2000m.

● atmospheric conditions Temperature is +40 ℃, relative humidity of air no more than 50% at a lower temperature allows a higher relative humidity, for example, up to 90% at +20 ℃. Since the condensation temperature of the occasional special measures should be taken.

● Pollution degree Pollution levels for three.

● Installation Category Installation Category II class.

● Terminal connection capacity: spiral push-in terminals, tile-shaped washer on the screw terminal combination can be more firmly pressing harness; wire cross-sectional area of ？？the smallest: 1x0.5mm2; Maximum: 2x1.5mm2
