| Programming Communication Cable , Pc / Ppi | |
|---|---|
| Warehouse: | CNBM Shanghai NO.6 |
| Product code: | SN_0FB95DE25081 |
| Mini Order Qty: | 1 |
| Type: | |
| Drawing No.: | |
| Quantity: | - + EA |
| Remaining : | 100 |
| Shipping Cost: | To be confirmed |
| Add to Cart Add to Wishlist( 0 Adds) | |
Brand Name: Simatic/siemens
Model Number: 6es7 901-3db30-0xa0
Certificate: CE UL
input: 16 point
output: 16 point
dc: 24V
| Packaging Detail: | International standard new original packing |
| Delivery Detail: | 1-3day after the payment |

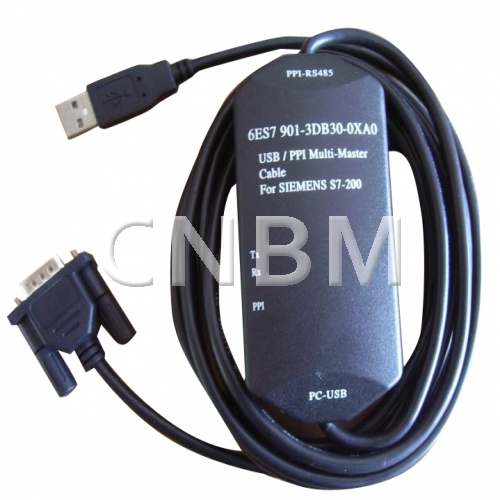

Model : 6es7 901-3db30-0xa0 s7-200 cable
Brand : simatic/siemens
Description new original

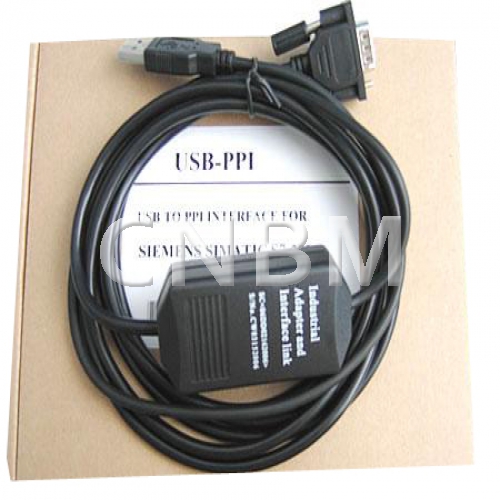

Type:siemens PPI usb cable
|
MPI serial-port adapter |
6ES7 901-3CB30-0XA0 |
|
MPI interface |
|
|
Type |
RS485 Isolation type |
|
Cable joints |
9-pin SUB-D interface(Male inerface) |
|
Baud rate |
19.2~187.5kbps Adjustable |
|
Max.communication distance |
1.2KM(baud rate:19.2kbps) |
|
Communication interface |
|
|
Type |
RS 232 |
|
Cable joints |
9-pin SUB-D interface(Female inerface) |
|
Baud rate |
19.2~38.4kbps Adjustable |
|
Permissible conditions |
|
|
Operating temperature |
-20°C~+60°C |
|
Storage temperature |
-20°C~+60°C |
|
Operating humidity |
5%~85%(30°C) |
|
Storage humidity |
5%~93%(40°C) |
|
Dimenstions(W×H×D)(mm) |
105×50×25,the total length of cable:3.5m |
|
Weight |
105 g |
