| Integrated Temperature Sensor | |
|---|---|
| Warehouse: | CNBM Shanghai NO.6 |
| Product code: | SN_5CAB09492B7A |
| Mini Order Qty: | 1 |
| Type: | |
| Drawing No.: | |
| Quantity: | - + EA |
| Remaining : | 100 |
| Shipping Cost: | To be confirmed |
| Add to Cart Add to Wishlist( 0 Adds) | |
Model Number: UTB8
insert depth: 50mm~2000mm(as customer's request)
output: 4~20ma
protection: IP65
OEM service: YES
housing material: cast alaluminium
process connection: M27*2 (male)or others
Other description： For Instruments for Measuring Temperature
| Packaging Detail: | each unit has individual box and all boxes are packed in standard packages. |
| Delivery Detail: | in 10 days |
1.protection:IP65
2.range:-200 ~1800 degreeC
3.output:4~20ma

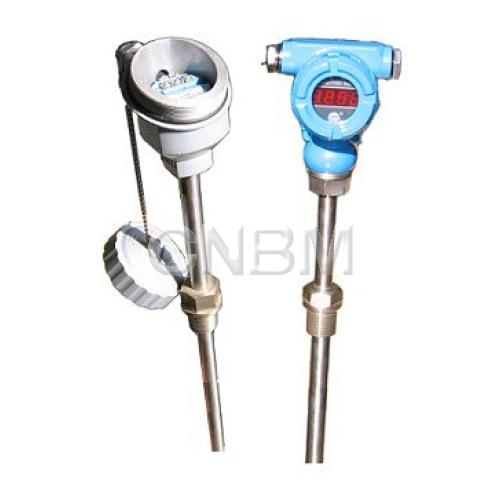

integrated temperature sensor
Descriptions:
UTB8 integrated temperature transmitter uses thermocouple or thermal resistor as temperature sensitive element, it can measure temperature of all kinds of liquid, steam and gas medium from – 200 to 1600 and transform thermocouple's or thermal resistance's signal to 4~20mA standard signal, simultaneously has real-time indication function on the spot.
UTB8 integrated temperature transmitter has firm & artistic housing, two-layer construction, 3-1/2 LCD or LED display, 0-100% indicator optional. UTB8 uses integrated electric circuit, which guarantee its stable signal and clear display, this is very convenient to calibrate and inspect the gauges on the scene. UTB8 has general type and explosive-proof type.
Features:
•Range:-200 °c~1800°c
• Integrated structure can display its real-time measuring value
• High accuracy, anti-interference, good long-term stability
• Signal is precise, can remote transmission (max. 1000 meters)
Specification:
| measuring： | gas or liquids compatible to stainless steel |
| temperature ranges： | thermocouple: E, K,S,B |
| thermal resistor: PT100,Cu50 | |
| insert depth： | 50mm~2000mm(as customer's request) |
| accuracy： | thermoresistor: 0.25%FS, 0.5%FS(standard); thermocouple: 0.75%FS |
| output signal： | 4~20mA |
| long-term stability： | <0.25%FS/year |
| supply voltage： | 24V±10% DC |
| load resistance： | RL(max.)=(V-12)/0.02, V:power supply of transmitter |
| insulation resistance： | 100MΩ@50VDC |
| operating temperature range： | -20~+60°C |
| display： | LCD digital indicator in unit, -1999~1999 |
| temperature coefficient of zero： | 0.2%FS/10°C |
| temperature coefficient of span： | 0.2%FS/10°C |
| process connection： | M27×2 (male)or others |
| electrical connection： | 1/2NPT or M20( female ) ×1.5 |
| material of wetted part： | 1Cr18Ni9Ti stainless steel |
| material of housing： | cast alaluminium |
| explosive-proof： | Exia II BT6,Exd II BT6 |
| protection： | IP65 |
