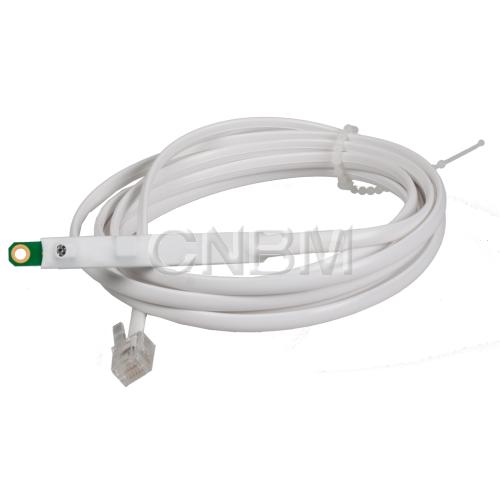

| Temperature And Humidity Sensors | |
|---|---|
| Warehouse: | CNBM Shanghai NO.6 |
| Product code: | SN_0C8BF40468F8 |
| Mini Order Qty: | 5 |
| Type: | |
| Drawing No.: | |
| Quantity: | - + EA |
| Remaining : | 100 |
| Shipping Cost: | To be confirmed |
| Add to Cart Add to Wishlist( 0 Adds) | |
Usage: Industrial
Theory: temperature and humidity control
Key Words: Digital Humidity and Temperature Gauging with Sensors (RH&T)
Matiral: Plastic
Control: Dual ways
Power Supply: AC220V*(80-110%),50HZ
Digital Humidity and Temperature Gauging with Sensors (RH&T);
Certificate:ISO
High quality but low price
Dual ways
Main Technical Indicators
|
Function: |
Parameter |
|
Operation Environment: |
Temperature-25-65°C,relative humidity no more than 95%RH |
|
Starting Control: |
85%RH±5%RH(20°C) |
|
Sensor Control: |
Changing manual and automobile,one to one controlling by sensor. |
|
Response Speed: |
Typical values no more than 5s |
|
Output: |
Work voltage 1 time,rated power resistive load AC220V 3A,normally open. |
|
Power Consumption: |
No more than 1.8W |
|
Resistant High Voltage: |
No breakdown and flashover phenomenon in 50HZ,2000Vrms,3min.
|
|
Anti-vibration: |
Work normally with 10-5-10Hz 2g in 3min |
|
Insulation Resistance: |
No Less than 500MΩ |
|
Three defenses(TH): |
Anti gas containing acid, alkali, salt
|
|
Working Life: |
Drive load is not less than 108 times |
|
Volume: |
48×48×78mm³ |
two install mode both front install and din rail install
Other description： For Instruments for Measuring Temperature
