| Bimetallic Thermometer | |
|---|---|
| Warehouse: | CNBM Shanghai NO.6 |
| Product code: | SN_E51AC9563E24 |
| Mini Order Qty: | 3 |
| Type: | |
| Drawing No.: | |
| Quantity: | - + EA |
| Remaining : | 100 |
| Shipping Cost: | To be confirmed |
| Add to Cart Add to Wishlist( 0 Adds) | |
Temperature: -80-500
Nominal diameter： 100mm
Precision: 1.5;2.5
Time constant: < 40s
Pressure: 6.3 Mpa
Max. voltage: AC 220 V
Material: stainles steel, carbon steel
HS code: 9025191000
| Packaging Detail: | Carton, Wooden Case |
| Delivery Detail: | within 2 weeks |

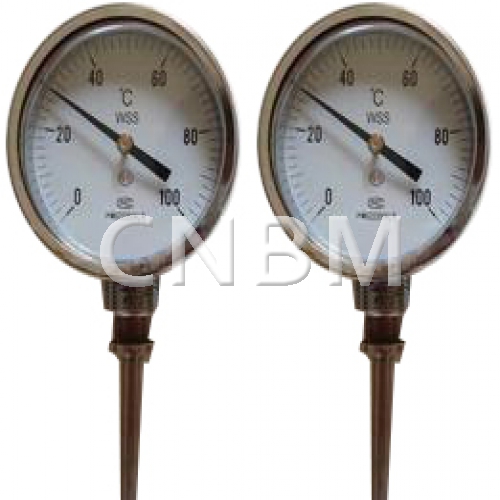

Bimetal Thermometer WSS-411
1) Range: -80 c and 600 c...
2) Industry use
3) OEM service
Supply Bimetal Thermometer WSS-411 (0-100 C)
(1) Model No. WSS-411
(2) Brand: JIEDA (China); OEM service availabe.
(3) Temperature measuring range: -80 °C - +600 °C
(4) Protection tube material: 1Cr18Ni9Ti
(5) Protection tube Diameter: Φ60
(6) Mounting & Fixing: Movable external thread.
(7) Accuracy: 1.5 (JB/T8803-1998)
(8) Time constant: J <40S
(9) Protection tube pressure: 6.3MPa
(10) Contact Rating:
Rated Power 10VA (no sense);
maximum voltage: AC 220V,
the maximum operating current: 1A (no sense),
For the upper and lower contacts and normally open
Header Working temperature: -25 ~ 55 degrees Celsius
(11) Payment terms: T/T; L/C; western union
(12) Delivery time: 3-15 days after payment
(13) Model Selection Table
|
Model No. |
Dial Diameter |
Case Material |
D |
A |
B |
T |
d |
l |
Measuring Range °C |
Accuracy |
|
WSS-301 |
60 |
1Cr18Ni9Ti (304) |
62 |
50 |
15 |
M16x1.5 |
6 |
100-500 |
-40~80 0~50 |
1.0 1.5 |
|
WSS-301B |
75 |
77 |
50 |
15 |
M16x1.5 |
6 |
100-500 |
|||
|
WSS-401 |
100 |
109 |
60 |
20 |
M27x2 |
8 10 |
75-2000 |
|||
|
WSS-501 |
150 |
159 |
60 |
20 |
M27x2 |
10 |
75-2000 |
Other description： For Instruments for Measuring Temperature
