Temperature Control Display Instrument | |
---|---|
Warehouse: | CNBM Shanghai NO.6 |
Product code: | SN_AEC37761BDD9 |
Mini Order Qty: | 1 |
Type: | |
Drawing No.: | |
Quantity: | - + EA |
Remaining : | 100 |
Shipping Cost: | To be confirmed |
Add to Cart Add to Wishlist( 0 Adds) |
Quick Details
The main technical indicators

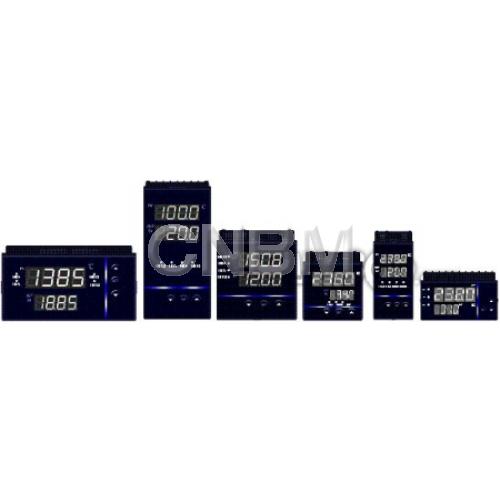

1 , use, panel mounted . ( There are horizontal , vertical and square of three)
2 , indicating the way : LED digital display, maximum reading of 1999 .
3 , model specifications : Model specifications in the table below ; measuring range below.
4 , the basic error :. ± 0.5% F · S ± 1 (F · S to show scale )
5 Resolution : | 200 | less 0.1: ℃ | 200 | over 1 ℃. ( Other quantities of bottom one word )
6, the maximum amount of fluctuation : less than two resolution values ??( Au -wave fluctuations in the amount of deviation from the fluctuation in the number of middle size measure ) .
7 , zero drift : less than one hour zero drift fifth basic errors.
8 , after continuous work, it still meets the requirements of this error .
9 Dimensions : 160 * 80 * 175 (mm). Square meter is 96 * 96 * 150 (mm).
10 , hole size: Horizontal 152 * 76 (mm). Upright as 76 * 152 (mm). Square meter is 90 * 90 (mm).
11 Power supply : 220V. 50HZ ± 10%.
12 , weight : 1.25kg.
13 , the working environment : temperature -10 ~ 50 ℃, relative humidity less than ± 90%
14 -bit control ; setting range full scale ; control error is less than ± 0.5% F · S ± 1 word . Output contact capacity : 220V, 3A. ( AC non-inductive load ) .
15 , constant current output : 0 ~ 10mA load capacity is 0 ~ 1.5kΩ; 4 ~ 20mA is 0 ~ 450Ω, the output accuracy of less than ± 0.5% F · S.
Environmental requirements:
Working temperature :0-50 ℃ · Relative humidity: 20-85% RH · Storage temperature: -10 ~ 70 ℃ Meter
