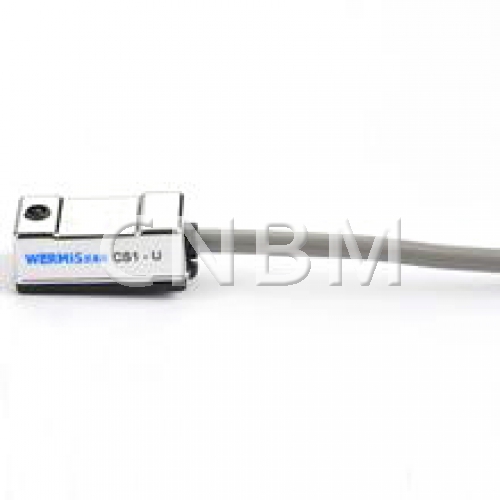

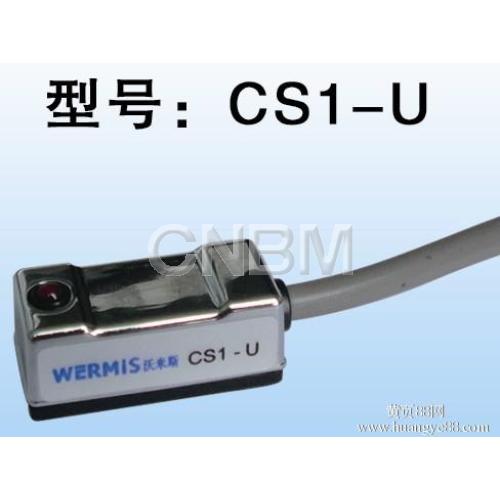

| Electromagnetic Switch | |
|---|---|
| Warehouse: | CNBM Shanghai NO.6 |
| Product code: | SN_830E7A5B88B9 |
| Mini Order Qty: | 10 |
| Type: | |
| Drawing No.: | |
| Quantity: | - + EA |
| Remaining : | 100 |
| Shipping Cost: | To be confirmed |
| Add to Cart Add to Wishlist( 0 Adds) | |
Quick Details:
Technical parameters
Maximum power: ≤ 10W
Working voltage: the two-wire system: 5-250V DC/AC
Detection range: (to the actual detection distance, detection distance increases or decreases depending and magnetic steel)
Hysteresis: less than 30% of the distance
Standard testing body: Φ 8 × 5 magnetic steel
Parasitic capacitance: 1.0P
Response time: 10ms
Environment temperature: -20 ℃ ~ 80 ℃
Anti vibration ability: 10-55Hz (cycles per minute) complex amplitude of 1mm, X,Y, Z 2 hours in each direction
Impact resistance: 500M/S2 (50G) 3 X, Y, Z in each direction
Repeatability: about the return difference of 10%
Protection grade: IP67
Induction: magnetic induction
Induction principle: magnetic induction
The load power: 3A
Output type: normally open
The off time delay: normally open
Scope of application: induction
Product certification: ROHS
