| Proximity Switches | |
|---|---|
| Warehouse: | CNBM Shanghai NO.6 |
| Product code: | SN_F8C80F51B9F5 |
| Mini Order Qty: | 1 |
| Type: | |
| Drawing No.: | |
| Quantity: | - + EA |
| Remaining : | 100 |
| Shipping Cost: | To be confirmed |
| Add to Cart Add to Wishlist( 0 Adds) | |
Quick Details:
Custom processing: yes

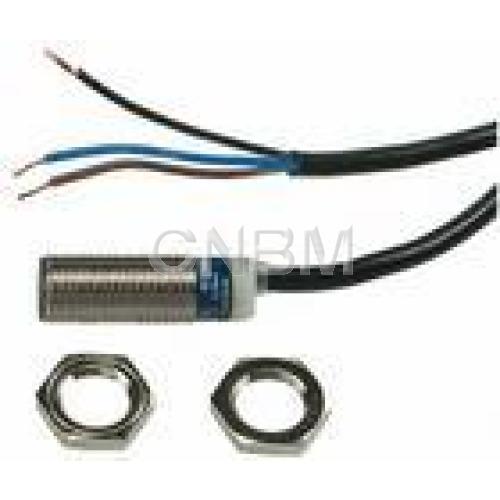

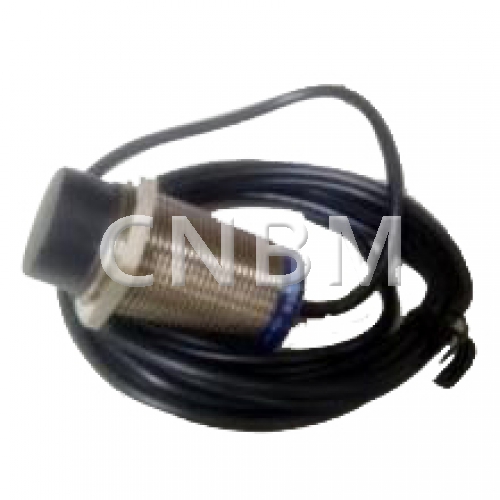

Model: XS2M30MA250
Type: Inductive proximity switches
Frequency response: 50HZ Rated voltage :10-30 (V)
Rated current: 200m (A)
Detection distance: 10 (mm)
Certification: ce
Switch Overview
How it works: It uses electromagnetic sensitivity to metal objects trigger action. When an object close to the switch, the switch inherent physical changes occurring electromagnetic fields, electrical switching mechanism is triggered action.
Features: no mechanical contact, high detection rate, triggering, reliable action.
Main testing method:
Inductive: Detection principle of electromagnetic movement. XS series, is used to detect metal objects, used more often.
Capacitive: motion detection principle of the electric field. XT series, for detecting non-metallic objects, a liquid or powder particles.
The technical term
Line 3: 2 +1 power line signal lines for DC technology: To select the output NPN / PNP.
Line 2: detection switch connected in series with the load, but there are errors due to the effect of the consumption of the product itself that is the residual voltage, the residual current
